light guide
Date1956-1970
Inventory Number2003-1-0281b
ClassificationLight Guide
Subject
Maker
Harvard Cyclotron Laboratory
1937 - 2002
Cultural Region
Place of Origin
Dimensions26 x 20 x 20.3 cm (10 1/4 x 7 7/8 x 8 in.)
Material

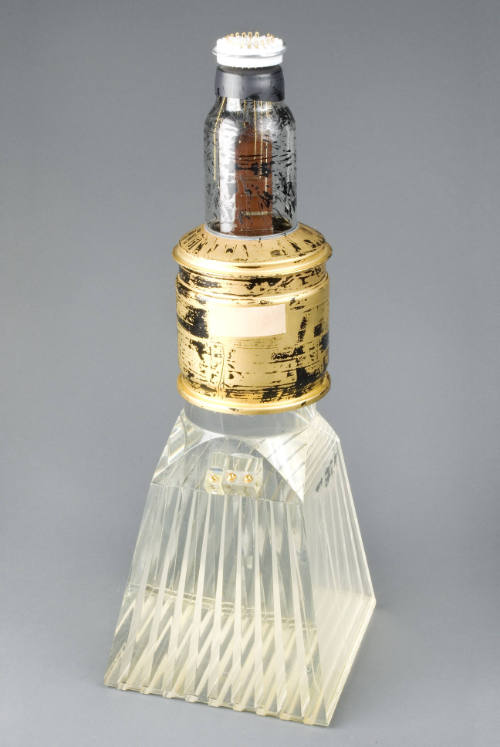

DescriptionThis light guide is formed of 10 trapezoidal plates of acrylic glued to form a polyhedron. The plates are spaced farther from each other at the bottom than they are at the top. Acrylic spacers are glued between the plates at the bottom. There is a spherical concave surface at the top that matches the surface of the photo-cathode tube (2003-1-0281a).
Three light-emitting diodes are glued into some acrylic blocks on one side near the top. They have gold connectors. The diodes are to test the instrument.
Three light-emitting diodes are glued into some acrylic blocks on one side near the top. They have gold connectors. The diodes are to test the instrument.
In Collection(s)
Signedunsigned
FunctionThe light guide (or light pipe) was used to guide photons from a block scintillator into a photomultiplier tube.
Historical AttributesUsed at the Harvard Cyclotron Laboratory in the late 1950s or 1960s attached to a scintillator and photomultiplier, for the detection of neutrons in order to get some measure of energy.
