cathetometer
Date1870-1890
Inventory Number1998-1-0249
ClassificationCathetometer
Subject
Maker
William Grunow
fl. 1849 - 1890
Cultural Region
Place of Origin
Dimensions53.4 x 28.7 x 28.7 cm (21 x 11 5/16 x 11 5/16 in.)
Material

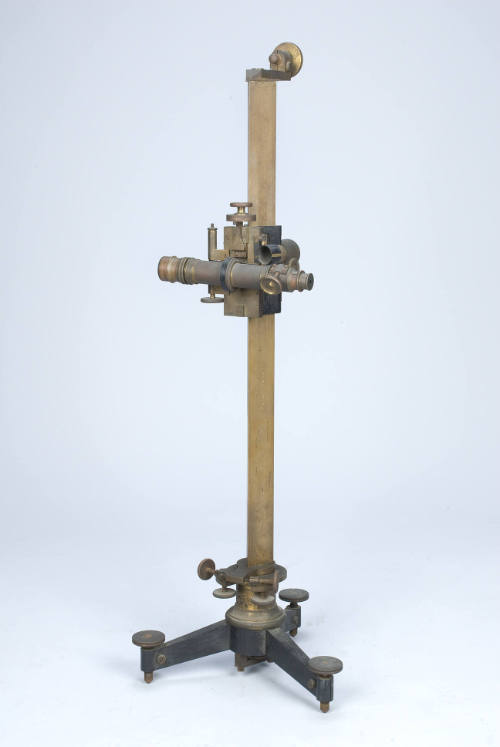

DescriptionThe instrument rests on three feet, each of which has a leveling screw. The pillar rotates and can be finely adjusted by two tangent screws. There is no vernier or scale for that purpose.
A graduated silver line runs along the pillar. The scale is in centimeters, from -1 to 51, divided in millimeters. A vernier is attached to the bracket supporting the telescope. On the left, a rotating magnifying lens was added to better see the vernier's scale. A screw is used for fine height adjustments.
The telescope is held in place by a brace fixed to the mount. Two screws, at each end of the telescope, are used to focus the eyepiece and objective. A tangent screw at the top is used to precisely adjust the vertical inclination of the telescope. A counter weight is attached to a sliding support at the back.
A graduated silver line runs along the pillar. The scale is in centimeters, from -1 to 51, divided in millimeters. A vernier is attached to the bracket supporting the telescope. On the left, a rotating magnifying lens was added to better see the vernier's scale. A screw is used for fine height adjustments.
The telescope is held in place by a brace fixed to the mount. Two screws, at each end of the telescope, are used to focus the eyepiece and objective. A tangent screw at the top is used to precisely adjust the vertical inclination of the telescope. A counter weight is attached to a sliding support at the back.
Signedunder telescope: W'M Grunow / New York
FunctionA cathetometer is an instrument used for the accurate measurement of differences of heights. Large cathetometers could measure differences of as much as one meter. It was used, for instance, to determine the precise differences in the height of a column of mercury at different times during an experiment involving barometric measurements. In chemistry, it could accurately measure the difference of height of two liquids in glass vessels.
ProvenanceTransferred to CHSI from the Department of Engineering, Pierce Hall, Harvard University, via Richard Land, November 25, 1987.
