rheostat
Date1924-1936
Inventory Number1997-1-0419
ClassificationRheostat
Subject
Maker
Hardwick-Hindle Company
1924 - ca. 1936
Cultural Region
Place of Origin
Dimensions13.5 x 25 x 10 cm (5 5/16 x 9 13/16 x 3 15/16 in.)
Material

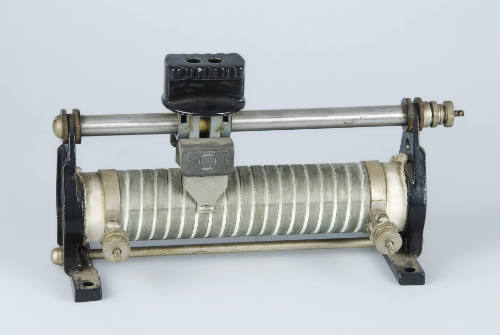

DescriptionA device consisting of a cylinder of insulating material held horizontally by a metal frame. A strip of metal is wound around the cylinder in a helical fashion from one end to the other. No turn ever touches the others around it. At both ends of the strip are electrical connectors. Above the cylinder, also held by the metal frame, is a metal bar from which hangs a large electric contact that touches the cylinder below on one side. This contact can slide from one side to the other.
Signedon slider: HH
Inscribedplate reads: .36 OHMS/ Max Amps 23
one number: 22
FunctionA rheostat functions as a variable resistance or as a voltage divider. If one end of the metal strip and the electrical contact suspended from the bar are connected to a circuit, the rheostat works as a variable resistance. It can be altered by moving the point of contact with the strip around the cylinder. If one connects the other end of the metal strip, the movable contact becomes a voltage divider.
